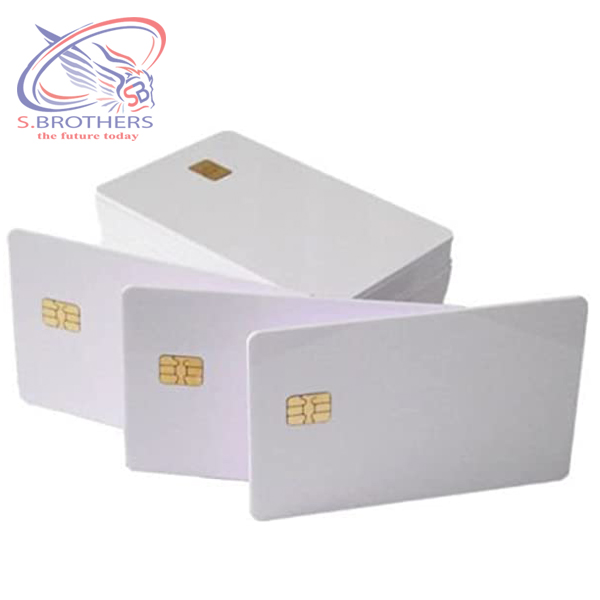

Combo PVC IC Card 64k & RF 125k

Description

Combo PVC IC Card 64k

Model: SB1417

Size: 85.6mmx54mm

Color: White

Thickness: 0.86mm thickness as standards

· Brand: Matica

· Model: SB1417

· Material: white PVC

· Size: 85.5mm*54mm

· Thickness:0.86mm thickness as standard

· Surface: Glossy

· Color: Read, green, blue & other colors

· Shape: Rectangle with round corner

· Printing: Retransfer/UV/Thermal/Inkjet Printer

· Type: RFID + Contact IC Card

· Frequency: 125 kHz

· Reading Range: 0 – 7.5cm

· Applications: Club, visiting, insurance, super marketing, parking, school, hospital, business, government, campus, entertainment, library, etc.

· Packaging Details: 200pcs box

IC Brand: Atmel

• Model: AT24C64

· 2-WireSerial EEPROM64K (8192 x s8)

• Low-Voltage and Standard-Voltage Operation

– 2.7 (VCC = 2.7V to 5.5V)

– 1.8 (VCC = 1.8V to 5.5V)

• Low-Power Devices (ISB = 2 μA at 5.5V) Available

• Internally Organized 4096 x 8, 8192 x 8

• 2-Wire Serial Interface

• Schmitt Trigger, Filtered Inputs for Noise Suppression

• Bidirectional Data Transfer Protocol

• 100 kHz (1.8V, 2.5V, 2.7V) and 400 kHz (5V) Clock Rate

• Write Protect Pin for Hardware Data Protection

• 32-byte Page Write Mode (Partial Page Writes Allowed)

• Self-Timed Write Cycle (10 ms max)

• High Reliability

– Endurance: 1 Million Write Cycles

– Data Retention: 100 Years

• Automotive Grade and Extended Temperature Devices Available

• 8-pin JEDEC PDIP, 8-pin JEDEC SOIC, 8-pin EIAJ SOIC, and 8-pin TSSOP Packages

Description:

The AT24C32/64 provides 32,768/65,536 bits of serial electrically erasable and programmable read-only memory (EEPROM) organized as 4096/8192 words of 8 bits each. The device’s cascadable feature allows up to 8 devices to share a common 2-wire bus. The device is optimized for use in many industrial and commercial applications where low power and low voltage operation are essential. The AT24C32/64 is available in space-saving 8-pin JEDEC PDIP, 8-pin JEDEC SOIC, 8-pin EIAJ SOIC, and 8-pin TSSOP (AT24C64) packages and is accessed via a 2-wire serial interface. In addition, the entire family is available in 2.7V (2.7V to 5.5V) and 1.8V (1.8V to 5.5V)

Versions.

IC combo card is a glossy plastic VIP card with a metallic texture that can boost the owner’s high-end brand image while also highlighting the cardholder’s identity. It features a weatherproof and shiny surface, is made of PVC, and measures 85.6 x 54mm with a thickness of 0.80mm.
